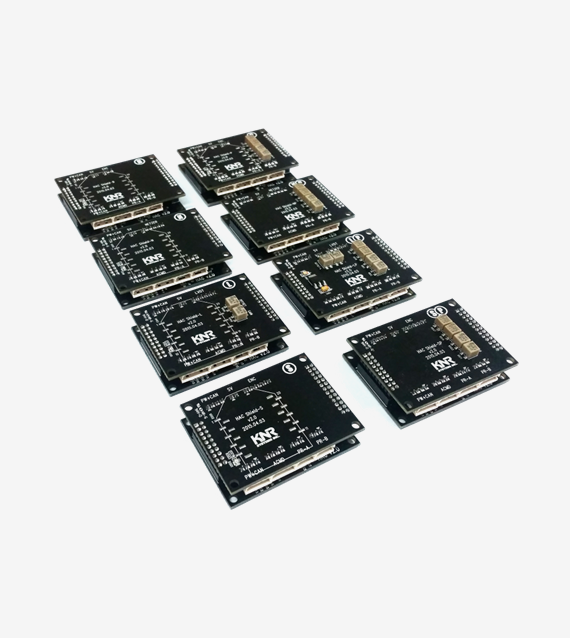

HAC 사양(HAC Specification)
| INDEX | Specification |
|---|---|
| Processor | • Cortex-M4 • Clock : 72MHz |
| Input & Output | • Servo Valve Output 1Ch - 33mA (Series resistor of coils is 150Ω) • External Command Signal (Analog Input) 1Ch (0~5V) • Feedback Sensor Monitoring Signal (Analog output) 1Ch (0 ~5V) • Position Sensor Input • Pressure Sensor Input 2Ch |
| Communication | • CAN 1Ch, 500kpbs
• Serial Communication (for using HAC parameters setup) • (Option) Wireless Communication (ZigBee) (HAC-B, N, L, S, P) |
| Sampling Rate | Max. 5kHz |
| 전원 | - 정격전압 : 7.5Vdc (HAC-B, P, N, S, SP, NP) ±15Vdc (HAC-L, HAC-LP) - 소모전류 : 100mA이하 |
| Size (W x D x H) | 55 x 40 x 8 mm |
